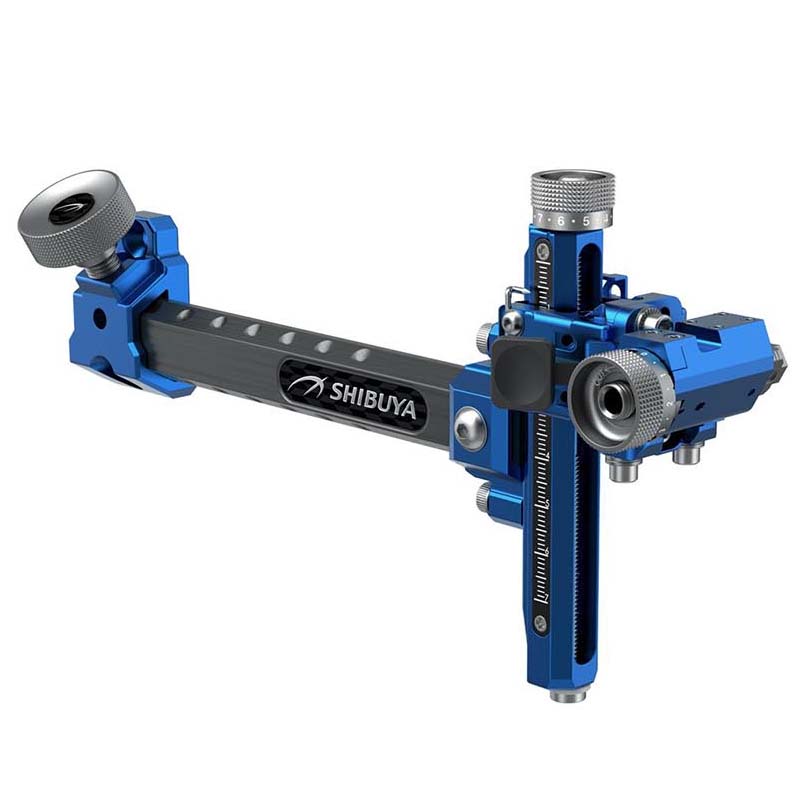

Shibuya Ultima CPX III 400 Carbon Compound Target Sight

by Shibuya
$599.99
SKU CAO20105HQ

Notify me when back in stock

The newest Shibuya Ultima compound sight is rock solid, lightweight, reliable, and better than ever!

The CPX III sight comes with 4" of elevation adjustment, laser engraved sight tapes, as well as smooth and precise micro click adjustment. The sight features the revolutionary, patent-pending ZPE system, which puts backlash and play in elevation adjustment in the rear view mirror.

A readjustable aluminum wedge secured with Nord-Lock washers eliminate any gap between the threaded locking block and the aperture block, creating a solic and secure connection.

  • Extension bar: 6", 9"
  • Weight" 206g / 7.3oz (6"), 225g / 7.9oz (9")
  • Elevation: 100mm / 4"
  • Elevation adjustable range: approx. 73mm
  • Windage adjustable range: approx. 10mm
  • Adjustment increments: 1mm / 1/24" per revolution, 0.05mm / 1/480" per click
  • Compatible scopes: 10-32 threaded scopes
  • Adjustable 2nd and 3rd axis
  • Material: carbon (extension bar), 6000 series aluminum alloy (elevation and windage units)
  • Included: soft case, offset bracket, 10-24 mounting screws, adjustment washers, three Hex wrenches (1.5mm, 2mm, 2mm)

The indicator pin is redesigned; the new flat-shelf indicator is closer to the sight surface than ever before and easy to read. Both side pins are locked by a set screw to prevent any accidental or unintentional movements. Shibuya's innovative Tria-Lock system keeps the scope rod approximately 1/2" closer to the elevation bar than conventional sights, thereby significantly reducing rattle and creating perfect and precise, unyielding alignment. The now-patented X-lock system creates a readjustable, zero-tolerance fit between the windage unit and the sight frame, with super-slick and durable polyacetal resin guide spacers enclose the elevation rail, re-adjustable at the turn of a set screw. All parts field-adjustable and replaceable.
