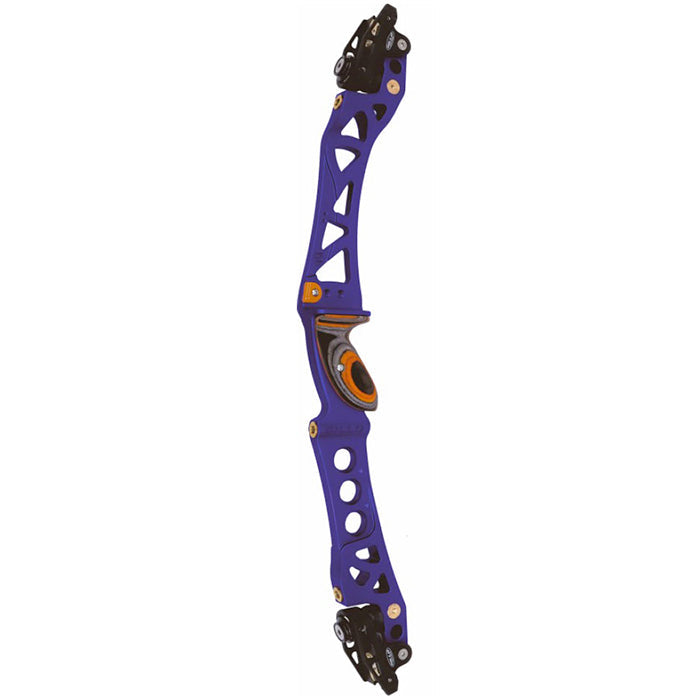

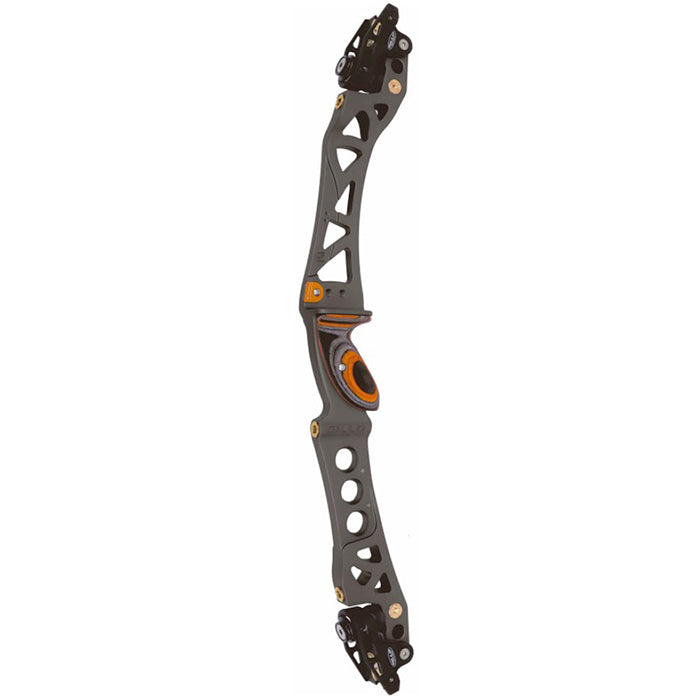

Gillo GT 27" ILF Recurve Riser

by Gillo
$939.99
SKU CAO12194HQ

Notify me when back in stock

Gillo riser are designed and assembled in Italty and are made using aeronautic grade materials and parts. The new Gillo GT Riser comes with innovative weight forward technology, a floating pocket design and the ability to customize the riser to your exact needs. Something essential for barebow archers.

The all new floating pocket allows massive adjustment in weight of up to 30 percent.

Specifications

  • Recurve & Bare Bow riser
  • Formula limbs compatible
  • Floating limbs pockets allow over 30% poundage adjustment range
  • Integrated shock absorbers
  • 27.5”length, RH and LH versions
  • Body and Pocket smachined from solid Aluminum bar
  • Matte sandblasted anodized surface
  • Aluminum 7075 Limbs alignment plates
  • Special round seats for optional balancing weights
  • Stainless steel limbs bolts assembled in AL7075 black anodized bodies
  • Hard Wood, Root color medium grip
  • 3 front stabs bushings, 1 back stabs bushings, all made by Stainless Steel Gold color Titanium Nitride coated
  • 2 additional 5/16-24 UNF tapped holes on back for more stabilizers
  • Front center stabilizer bushing 1mm off from axis for perfectbalance
  • Compatible to all G1 ,GQ and G5 Bare Bow weights,grips and accessories
  • Approx. 1350gr total weight
  • Packing includes long clicker plate,Manual with Warranty card,GRS-03 riser protection sleeve,4xAllen wrenches, 5xSS screws for cliker and Bare Bowweights, 2 xBrass grub screws for limbs bolts locking

Bow sizing based on archer's height for Olympic Recurve

Olympic Recurve bows typically range in overall size from 66" to 70". Below is a rough guideline for new archers getting started in the sport.

  • 5'5" or shorter = 66" bow
  • 5'6" to 5'9" = 68" bow
  • 5'10" or taller = 70" bow

The Height of a modern Olympic Recurve bow is dictated by a combination of the riser size and the limb size. Combining long limbs with two different size risers will result in two different size bows. The typical Olympic riser size is either 23, 25" and 27".

Bow sizing based on archer's Draw Length for Traditional Takedown

Please note, traditional recurve draw length is typically shorter than compound. If transitioning always scale down at least half an inch.

  • 26" or shorter = Small Limbs
  • 27-29" = Medium Limbs
  • 29" or longer = Long Limbs

These are rough guidelines for new archers so they get the most out of their new traditional equipment. For some takedown bows limb length is not a choice. After some experience you may find you like longer or shorter limbs.

The Height of traditional takedown bows will often be dictated by a combination of the riser size and the limb size. A 58" bow for example can be made up of any combination of limb and riser size that creates an overall length of 58".

Traditional Takedown bows can come in sizes anywhere from 52" all the way up to 70". Bows that are longer in length are typically used in tournament situations while bows shorter in total length are used for hunting.

Age and Experience guideline

  • 14 years old or younger = poundage should be the as their age. Example 12 years old should be shooting 12# bow.
  • 18 to 14 years old = 16# to 20# depending on body build and height
  • Adult: Beginner = under 20#, Intermediate 22# to 28#, Advanced with experience = 30# and up.
